STEBAjet – Jet cleaner for cleaning reservoirs

Cleans three times the area thanks to an innovative rotary drive
Topics
Fields of application
Industries

STEBAjet – the swivelling jet cleaner

The STEBAjet keeps solids and contaminants in suspension whilst draining rain water tanks, ensuring they are transported to the sewage treatment works along with the wastewater.

An optional suction pipe allows the unit to operate until the tank is completely drained.

The water-air mixture ensures efficient mixing and prevents deposits from forming on the tank floor.

The STEBAjet is suitable for both new builds and for retrofitting existing rain water tanks.

Thanks to its unique pneumatic rotary drive, the STEBAjet jet can cover large areas and thus clean tanks where, previously, several fixed jets were required. Available with either a 90° or 150° rotary drive.

Engine power → Jet effect

2.2 kW ──────────➤ 8 m

4.0 kW ────────────➤ 10 m

5.0 kW ──────────────➤ 12 m

6.6 kW ──────────────────➤ 16 m

10 kW ────────────────────➤ 18 m

15 kW ────────────────────────➤ 22 m

STEBAjet automatic pool cleaning
Kompletterneuerung RB
STEBAjet_APW

Technical information

Power supply 3 x 400 VAC
Performance / Jet effect 2.2 kW / 8 m – 15 kW / 22 m
(available in various power ratings)
Horizontal swivelling movement 90° or 150°
Piping DN 100 up to 5 kW
DN 150 from 6.6 kW
Accessories Compressed air supply, including maintenance unit
Installation and maintenance Easy to install and can be adapted to any structure.

Advantages

  • Precise end positions
    Adjustment of the swivelling movement via limit switches.
  • Automatic operation
    Following the start signal, the STEBAjet moves pneumatically within the defined swivelling range.
  • Intelligent activation
    Automatic start during the drainage process as soon as the water level in the basin falls below a defined level.
  • Automatic shut-off
    The STEBAjet stops automatically as soon as the water level in the basin rises again or a defined limit value is reached.
  • Flexible parameterisation
    All operating parameters can be individually configured and adapted to the requirements of the system.
  • Integrated safety function
    In installations in enclosed basins, the STEBAjet switches off immediately when the access hatch is opened.
  • Automatic functional test
    Regular self-tests ensure operational readiness – even during prolonged periods without rain.The test is time-controlled based on a freely definable weekday and a start time.

Properties

  • Robust and efficient

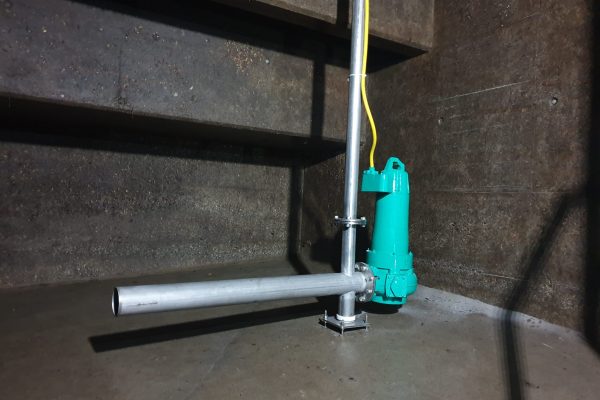

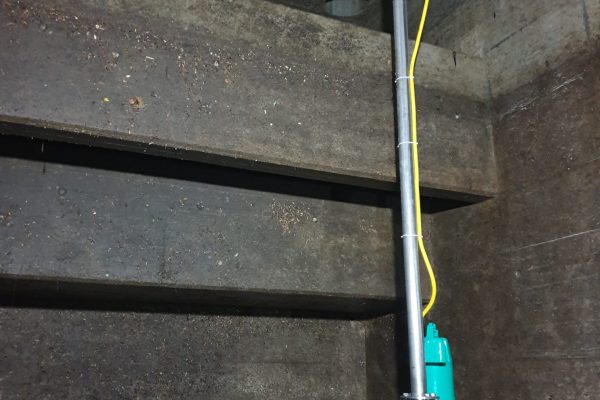

    The STEBAjet consists of a submersible sewage pump with an injector, or rather an air intake pipe and a jet pipe, whereby a water-air mixture is pumped to create a roller with a lifting effect in the tank’s water. The STEBAjet can be installed in new tanks or retrofitted into existing ones.
  • High efficiency
    Thanks to its pneumatically triggered swivelling motion – which can be precisely adjusted using limit switches – the STEBAjet covers a large area of the rain water tank. The cleaning jet keeps solids and contaminants suspended, ensuring they are flushed away with the water during the emptying process. A key advantage over other cleaning techniques is that the STEBAjet suffers no loss of effectiveness, regardless of the basin’s geometry, gradient or supports.
  • Ground-level cleaning
    The STEBAjet can be supplied with an additional suction pipe, which draws water from a depression in the basin, thereby enabling the STEBAjet to operate until the basin is completely emptied.
